Impeller: 2.5hp – Jacuzzi J-LX/J-LXL/J-400/J-300/J-200/J-100 (2009+)

Product image 1
1 / 4

Impeller: 2.5hp – Jacuzzi J-LX/J-LXL/J-400/J-300/J-200/J-100 (2009+)

6500-612 – OEM Jacuzzi® Impeller, 2.5hp. Used in J-LX/J-LXL/J-400/J-300/J-200/J-100 Series, 60Hz. Designed for 1 & 2 Speed Motors, 56FR.

Compatibility:

  • Jacuzzi® J-LX/J-LXL/J-400/J-300/J-200/J-100 Series (2009+), 60Hz

Special Notes: Used on 1 & 2 Speed Motors, 56FR. Ensure compatibility with specific pump models and configurations.

Bracketless LX 56 & 48 Frame Pump Parts (5/2009+)

Compatible Pumps:

  • 6500-352S – Universal Bracket Mount 56 FR, 1-Speed
  • 6500-365S – Universal Bracket Mount 56 FR, 1-Speed
  • 6500-367S – Universal Bracket Mount 56 FR, 2-Speed
  • 6500-363S – Universal Bracket Mount 56 FR, 1-Speed
  • 6500-845S – Universal Bracket Mount 48 FR, 2-Speed
  • 6500-357S – Universal Bracket Mount 48 FR, 1-Speed

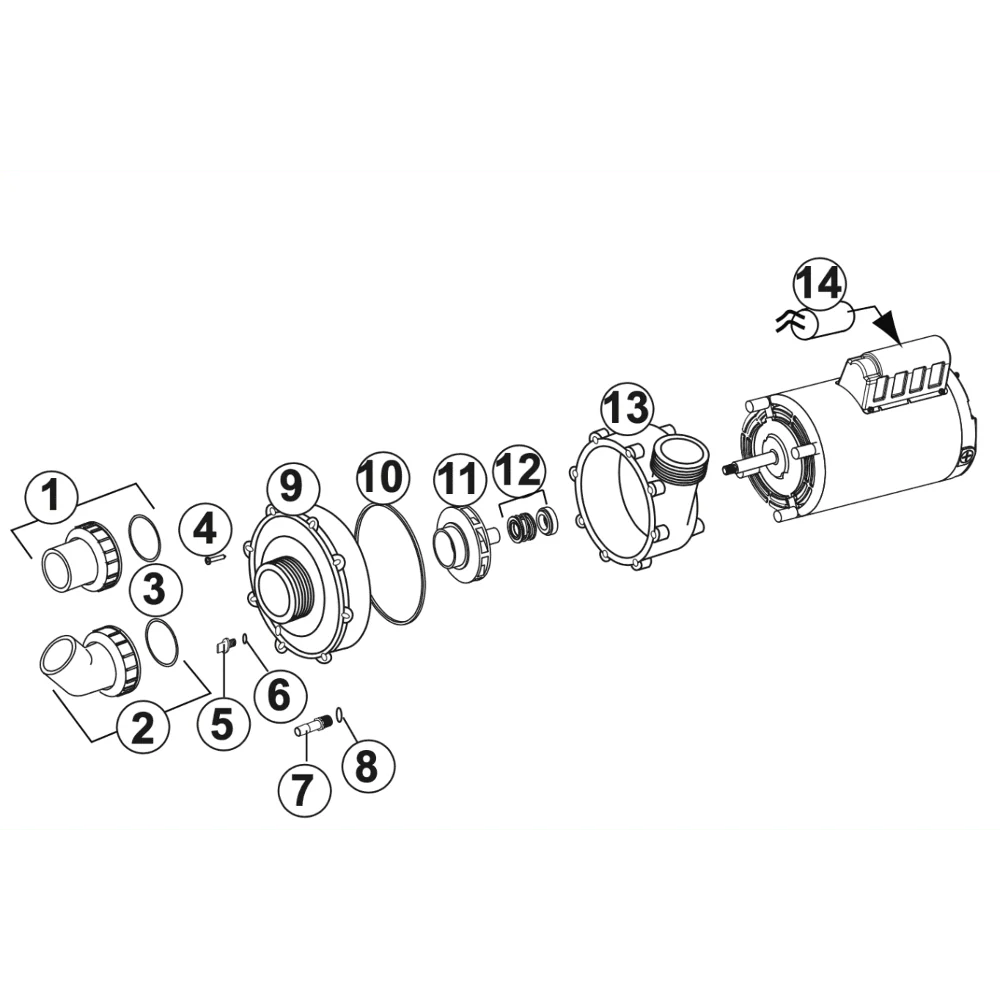

Exploded view diagram of Bracketless LX 56 & 48 Frame Pump Parts
Item # Part # Description
1 6500-232** Union Assembly, Straight (O-Ring Included)
2 6500-037** Union Assembly, 45° (O-Ring Included)
3 6000-645 or 6000-554** Union O-Ring (1 ea.)
4 6500-601 Screw, Self-Tapping (1 ea.)
5 6500-602 Drain Plug
6 6500-603 Drain Plug O-Ring
7a 6540-171* Adapter, 1/4-18 NSPM thread x 3/8" Barb, Stainless Steel (Replaces 6540-030)
7b 6540-030 Adapter, 0.25" MIPT x 0.375" Barb, Glass Filled Polypropylene - Noryl
8 6540-263* O-Ring, 0.434" ID x 0.682" OD x 0.125" Ø
9 6500-604 Housing, Front (Volute) 56FR
10 6500-605 Housing O-Ring 56FR
11 6500-612 Impeller, 2.5hp (Used on 1 & 2 Speed Motors) 56FR
12 6500-281 Seal-Stationary ASM (PS200)
13 6500-606 Housing Rear 56FR
14 6500-613 Run Capacitor 2.5hp (for 1&2 Speed LX Motors Only)
15* 6500-010* Housing: Front Lingxo 48FR*
16* 6500-012* Housing: Back Lingxo 48FR*
17* 6500-013* Impeller: 1-1/2 HP Lingxo 48FR*
18* 6500-014* O-Ring front housing Lingxo 48FR*
19* 6500-281* Mechanical seal Lingxo 48FR*

Note 1. All J-LX/J-LXL/J-400/J-300 Series pump housings are universal and can be rotated to fit various configurations.

Note 2. When replacing the 6540-171 adapter, you must also replace the o-ring 6540-263 at the same time.

Note 3. Union design changed after May 2019. 6000-645 O-ring fits older unions with grey nut. 6000-554 O-ring fits newer unions with white nut. Complete unions 6500-232 or 6500-037 include O-rings.

* Not shown

6500-612 – OEM Jacuzzi® Impeller, 2.5hp. Used in J-LX/J-LXL/J-400/J-300/J-200/J-100 Series, 60Hz. Designed for 1 & 2 Speed Motors, 56FR.

Compatibility:

  • Jacuzzi® J-LX/J-LXL/J-400/J-300/J-200/J-100 Series (2009+), 60Hz

Special Notes: Used on 1 & 2 Speed Motors, 56FR. Ensure compatibility with specific pump models and configurations.

Bracketless LX 56 & 48 Frame Pump Parts (5/2009+)

Compatible Pumps:

  • 6500-352S – Universal Bracket Mount 56 FR, 1-Speed
  • 6500-365S – Universal Bracket Mount 56 FR, 1-Speed
  • 6500-367S – Universal Bracket Mount 56 FR, 2-Speed
  • 6500-363S – Universal Bracket Mount 56 FR, 1-Speed
  • 6500-845S – Universal Bracket Mount 48 FR, 2-Speed
  • 6500-357S – Universal Bracket Mount 48 FR, 1-Speed
Exploded view diagram of Bracketless LX 56 & 48 Frame Pump Parts
Item # Part # Description
1 6500-232** Union Assembly, Straight (O-Ring Included)
2 6500-037** Union Assembly, 45° (O-Ring Included)
3 6000-645 or 6000-554** Union O-Ring (1 ea.)
4 6500-601 Screw, Self-Tapping (1 ea.)
5 6500-602 Drain Plug
6 6500-603 Drain Plug O-Ring
7a 6540-171* Adapter, 1/4-18 NSPM thread x 3/8" Barb, Stainless Steel (Replaces 6540-030)
7b 6540-030 Adapter, 0.25" MIPT x 0.375" Barb, Glass Filled Polypropylene - Noryl
8 6540-263* O-Ring, 0.434" ID x 0.682" OD x 0.125" Ø
9 6500-604 Housing, Front (Volute) 56FR
10 6500-605 Housing O-Ring 56FR
11 6500-612 Impeller, 2.5hp (Used on 1 & 2 Speed Motors) 56FR
12 6500-281 Seal-Stationary ASM (PS200)
13 6500-606 Housing Rear 56FR
14 6500-613 Run Capacitor 2.5hp (for 1&2 Speed LX Motors Only)
15* 6500-010* Housing: Front Lingxo 48FR*
16* 6500-012* Housing: Back Lingxo 48FR*
17* 6500-013* Impeller: 1-1/2 HP Lingxo 48FR*
18* 6500-014* O-Ring front housing Lingxo 48FR*
19* 6500-281* Mechanical seal Lingxo 48FR*

Note 1. All J-LX/J-LXL/J-400/J-300 Series pump housings are universal and can be rotated to fit various configurations.

Note 2. When replacing the 6540-171 adapter, you must also replace the o-ring 6540-263 at the same time.

Note 3. Union design changed after May 2019. 6000-645 O-ring fits older unions with grey nut. 6000-554 O-ring fits newer unions with white nut. Complete unions 6500-232 or 6500-037 include O-rings.

* Not shown

$25.99
Impeller: 2.5hp – Jacuzzi J-LX/J-LXL/J-400/J-300/J-200/J-100 (2009+)—
$25.99

Description

6500-612 – OEM Jacuzzi® Impeller, 2.5hp. Used in J-LX/J-LXL/J-400/J-300/J-200/J-100 Series, 60Hz. Designed for 1 & 2 Speed Motors, 56FR.

Compatibility:

  • Jacuzzi® J-LX/J-LXL/J-400/J-300/J-200/J-100 Series (2009+), 60Hz

Special Notes: Used on 1 & 2 Speed Motors, 56FR. Ensure compatibility with specific pump models and configurations.

Bracketless LX 56 & 48 Frame Pump Parts (5/2009+)

Compatible Pumps:

  • 6500-352S – Universal Bracket Mount 56 FR, 1-Speed
  • 6500-365S – Universal Bracket Mount 56 FR, 1-Speed
  • 6500-367S – Universal Bracket Mount 56 FR, 2-Speed
  • 6500-363S – Universal Bracket Mount 56 FR, 1-Speed
  • 6500-845S – Universal Bracket Mount 48 FR, 2-Speed
  • 6500-357S – Universal Bracket Mount 48 FR, 1-Speed
Exploded view diagram of Bracketless LX 56 & 48 Frame Pump Parts
Item # Part # Description
1 6500-232** Union Assembly, Straight (O-Ring Included)
2 6500-037** Union Assembly, 45° (O-Ring Included)
3 6000-645 or 6000-554** Union O-Ring (1 ea.)
4 6500-601 Screw, Self-Tapping (1 ea.)
5 6500-602 Drain Plug
6 6500-603 Drain Plug O-Ring
7a 6540-171* Adapter, 1/4-18 NSPM thread x 3/8" Barb, Stainless Steel (Replaces 6540-030)
7b 6540-030 Adapter, 0.25" MIPT x 0.375" Barb, Glass Filled Polypropylene - Noryl
8 6540-263* O-Ring, 0.434" ID x 0.682" OD x 0.125" Ø
9 6500-604 Housing, Front (Volute) 56FR
10 6500-605 Housing O-Ring 56FR
11 6500-612 Impeller, 2.5hp (Used on 1 & 2 Speed Motors) 56FR
12 6500-281 Seal-Stationary ASM (PS200)
13 6500-606 Housing Rear 56FR
14 6500-613 Run Capacitor 2.5hp (for 1&2 Speed LX Motors Only)
15* 6500-010* Housing: Front Lingxo 48FR*
16* 6500-012* Housing: Back Lingxo 48FR*
17* 6500-013* Impeller: 1-1/2 HP Lingxo 48FR*
18* 6500-014* O-Ring front housing Lingxo 48FR*
19* 6500-281* Mechanical seal Lingxo 48FR*

Note 1. All J-LX/J-LXL/J-400/J-300 Series pump housings are universal and can be rotated to fit various configurations.

Note 2. When replacing the 6540-171 adapter, you must also replace the o-ring 6540-263 at the same time.

Note 3. Union design changed after May 2019. 6000-645 O-ring fits older unions with grey nut. 6000-554 O-ring fits newer unions with white nut. Complete unions 6500-232 or 6500-037 include O-rings.

* Not shown
